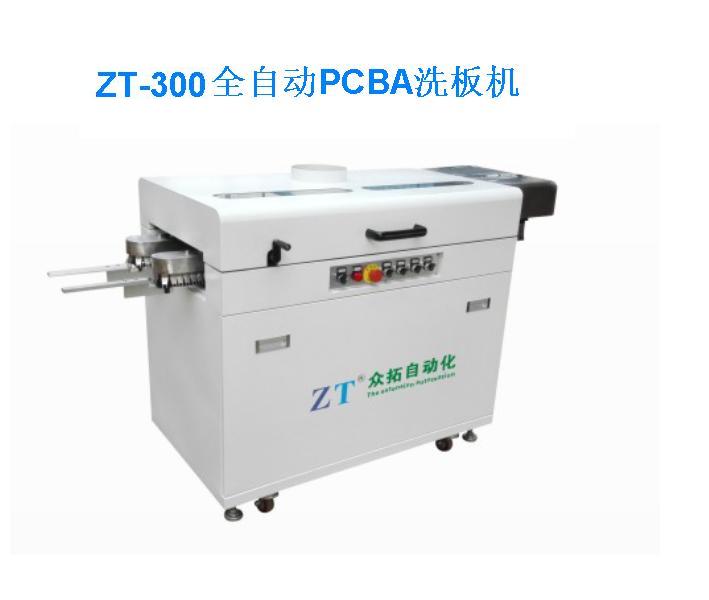

Model : ZT-300
Features
1. the machine has the unique body structure, the performance is stable, the cleaning effect is the highest in this industry.
2. dedicated, solder ball, flux trace and grasps the grain cleaning team;
3. imported brown brush, will not produce static, will not harm the PCB board;
4. for the PCB board with a plate (at least 1.5mm) and a width of 50-250mm;
5. cleaning agent automatic coating system to ensure that the welding surface of PCB board can be evenly coated with washing board water.
6. disc brush + two drum, to ensure that the PCB board in all directions clean in place, no dead angle;
7. cleanliness of the brush can be adjusted to meet the clean needs of different degrees.
8. the waste produced by the work automatically converge to the cleaning box in the lower part of the machine, which is convenient to clean up.
9. the use of high quality electronic speed motor drive, motor speed stepless adjustable, durable;
10. use 220 volt power supply, easy to use;
11. use brand electrical appliances, control system to ensure the reliability and stability of the control system.
Specifications
|
MODEL |
ZT-300 |
|
PCB Size |
200mm(W) X250mm(L) |
|
External Size |
L1750*W715*H980±2mm |
|
Cover Cylinder Size |
Dia. 95* L200mm |
|
Disc Brush Size |
Dia. 200* H30mm |
|
Roller Brush Size |
Dia. 95* L200mm |
|
Spindle Speed |
500 rpm / Min. |
|
Working Voltage |
220V 50Hz |
|
Power Supply |
0.5(KW) |
