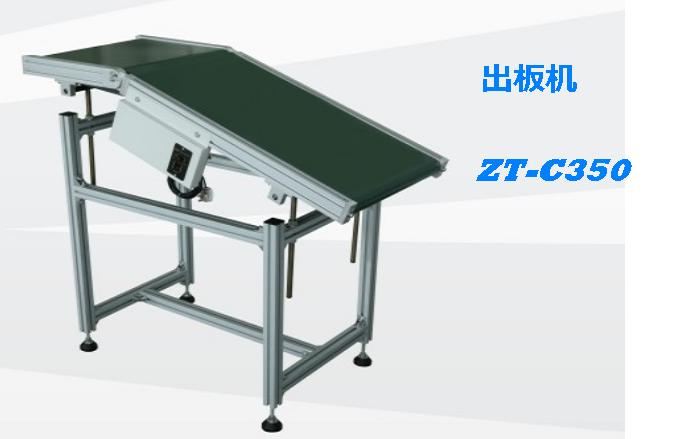

Outter PCB Machine
Features
1. Using a special belt drive roller, supporting supporting structure;
2. Drive is driven by OUTAI motor, and the electronic governor 0-1.8M is not adjustable.
3. Transport height 800-900MM adjustable, transport angle 0-90 degree adjustable;
4. The belt adopts a special tensioning structure, and the transmission is smooth and does not run.
Specifications
|
MODEL |
ZT-C350 |
|
PCB Width |
Max. 300mm |
|
PCB Conveyor Height |
900±20mm |
|
PCB Conveyor Direction |
L - R / R - L |
|
PCB Conveyor Speed |
0-1800mm/Min. |
|
Power Requirements |
AC 220V 50/60Hz |
|
Power Operation |
Approx. 40W |
|
Weight |
Approx. 50Kg |
|
Machine Size |
1200*460*1150 (L`W`H) |
