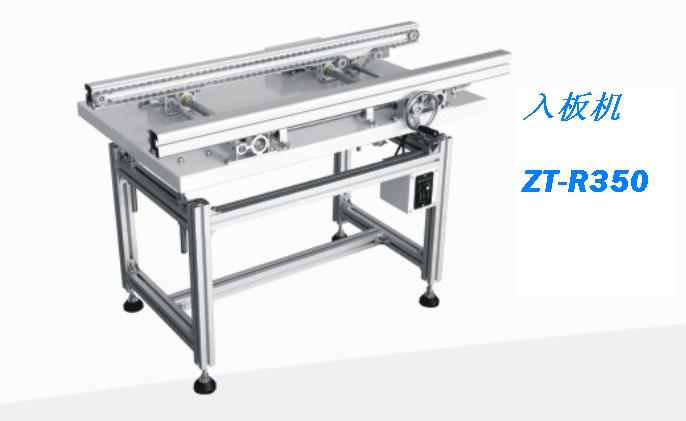

Into PCB Machine
Features
1. Double wire rod width modulation mechanism to ensure that the transport rail is parallel to each other;
2. Use special aluminum guide rail, special stainless steel nylon chain drive, ensure smooth connection, smooth transportation;
3. Thedrive is driven by GDP speed control motor, and the electronic governor 0-1.8M is not adjustable.
4. Transport height 700-800MM adjustable, transport angle 0-15 degree adjustable.
Specifications
|
MODEL |
ZT-R350 |
|
PCB Width |
Max. 350mm |
|
PCB Transfer Direction |
L - R / R – L |
|
PCB Transfer Speed |
0- 2M/Min. |
|
Transfer Motor |
Single 220V 25W |
|
Power Supply |
Single 220V 50Hz |
|
Transfer Length |
1000mm |
|
Weight |
Approx. 40Kg |
|
Machine Size |
1000*600*750 (L`W`H) |
