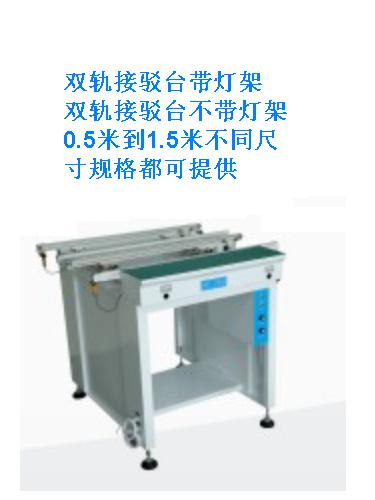

Double Guie Rail Conveyor
Features
1. Precision wire rod width modulation mechanism to ensure that the transportation tracks are parallel to each other.
2. The use of professional wear-resistant and anti static belt, special aluminum guide rail to ensure smooth, smooth transportation;
3. The standard is equipped with signal communication interface, which can be connected with other equipment.
4. The standard lamp holder and the process card can be selected. The optional side is aluminum or antistatic plate.
5. A large number of various specifications for choice: 0.4 meters, 0.5 meters, 0.6 meters, 0.8 meters, 1 meters, 1.2 meters, 1.5 meters and so on.
Specifications
|
MODEL |
LT-100LT(Without Lamp) |
LT-100LV(With Lamp） |
LT-150LV(With Lamp) |
|
Dimension(L*W*H) |
100x700x900mm |
100x700x1750mm |
1500x700x1750mm |
|
PCB Width |
50-350mm |
50-350mm |
50-350mm |
|
PCB Direction |
L-R |
L-R |
L-R |
|
PCB Transport Speed |
0-2000mm/Min. |
0-2000mm/Min. |
0-2000mm/Min. |
|
Transport Motor |
15W |
15W |
15W |
|
Power Supply |
220V50/60Hz |
220V50/60Hz |
220V50/60Hz |
|
Conveyor Height |
900±20mm |
900±20mm |
900±20mm |
|
Weight |
70Kg |
90Kg |
95Kg |
